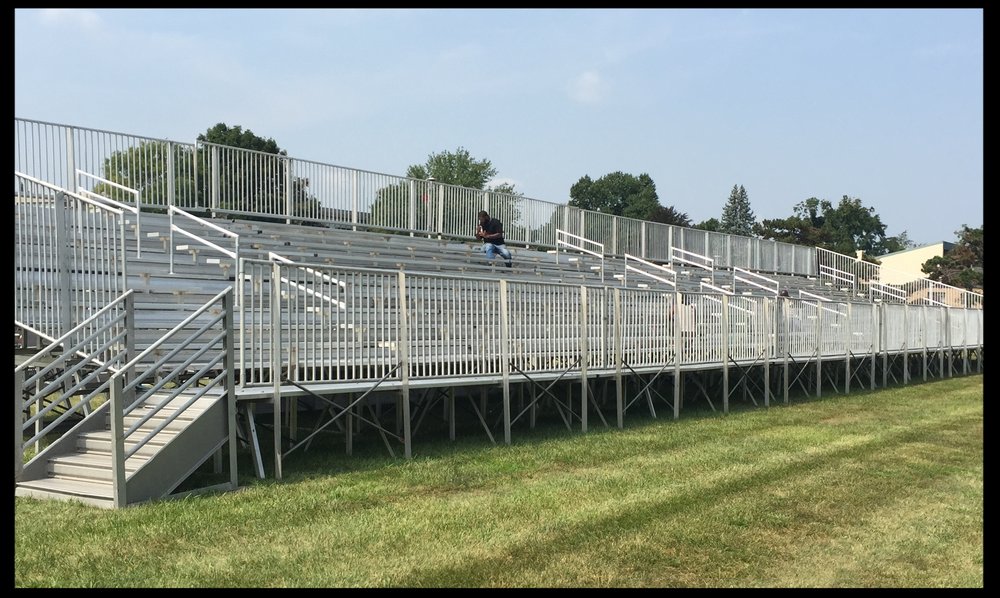

Elevated Aluminum Bleachers

32" Elevated Angle Frame Bleachers

 Elevated Aluminum Bleachers

Elevated Aluminum Bleachers



    Included Items

    Meet all NFPA 101 & 102 state and local safety and structural codes

    • Rise/Run: standard 8"/24"
    • Understructure material: standard aluminum angle (galvanized steel angle available upon request)
    • Top walkway height: standard from grade 32"
    • Walkway width: standard 67"
    • Seat boards: single 2" x 10" anodized or powder coated aluminum plank
    • Floor boards: double mill finish aluminum 2" x 10" planks
    • Aluminum end plank cover caps on all planks
    • Aluminum 1" x 6" aluminum riser boards
    • Aisle way width: standard 54"
    • Aluminum 67" wide aisle extensions
    • Aluminum mid-aisle rails
    • Safety fencing: standard, code compliant aluminum vertical 3/4" picket (chainlink available upon request)
    • Galvanized concrete power head anchors
    • Hardware: Standard hot-dipped galvanized (Stainless steel available upon request)
    • Two 5'0" wide aluminum staircases included

    Rise/Run: 8"/24"

    5 Rows - 21ft - Net Seating: 54 - $8,692

    5 Rows - 27ft - Net Seating: 74 - $11,178

    5 Rows - 31.5ft - Net Seating: 93 - $12,925

    6 Rows - 21ft - Net Seating: 64 - $10,142

    6 Rows - 27ft - Net Seating: 88 - $12,980

    6 Rows - 31.5ft - Net Seating: 111 - $17,164

    6 Rows - 37.5ft - Net Seating: 135 - $17,938

    6 Rows - 43.5ft - Net Seating: 211 - $20,733

    10 Rows - 21ft - Net Seating: 104 - $14,407

    10 Rows - 27ft - Net Seating:  144 - $18,111

    10 Rows - 31.5ft - Net Seating: 183 - $20,043

    10 Rows - 37.5ft - Net Seating: 223 - $24,389

    10 Rows - 43.5ft - Net Seating: 259 - $27,598

    11 Rows - 27ft - Net Seating: 151 - $18,553

    11 Rows - 31.5ft - Net Seating: 201 - $21,554

    11 Rows - 37.5ft - Net Seating: 245 - $25,586

    11 Rows - 43.6ft - Net Seating: 289 - $29,765

    16 Rows  - 31.5ft - Net Seating: 291 - $36,875

    16 Rows - 37.6ft - Net Seating: 355 - $37,352

    16 Rows - 43.6ft - Net Seating: 419 - $43,329

    Custom lengths available - Call for a FREE quote!


    Optional Add-Ons:

    Single Wheelchair Cut-In: $420

    Double Wheelchair Cut-In: $510

    All Aluminum Wheelchair Ramp: $6,650

    ADA compliant - fit with a 32" elevated walkway, 5'0" inside width, 32'0" of 1 on 12 drop, has one 180% landing platform, 28" upper landing platform, anodized aluminum 36" in height pull rail, rail extension both upper and lower, aluminum picket safety railing, all hardware hot-dipped galvanized.

    Additional Aluminum Staircase: $1,350

    Fits with a 32" elevated walkway, 5'0" inside width, 28" upper landing platform, pull railing extensions both upper and lower, aluminum picket safety railing, all hardware hot-dipped galvanized.
